3 Pole 10 Pair Magazine For Arrester With Gas Discharge Tube Professional Manufacturer

FOB Reference Price:Get Latest Price
  • 100 - 199 Pieces
    $4.41
  • >=200 Pieces
    $4.20
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Ruilon
Model Number:
RLTE-10
Color:
Grey
Resistance to alternating current:
10kA
Over voltage:
135V
Insulation resistance:
≥1000MΩ
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50pcs/ctn
Port
Shenzhen
Lead Time :
7~10days
Product Description

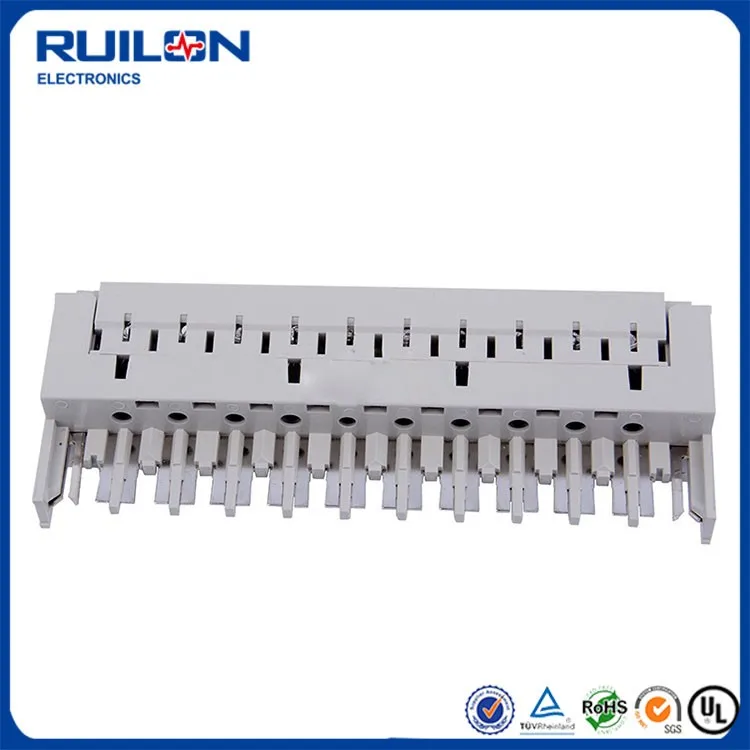

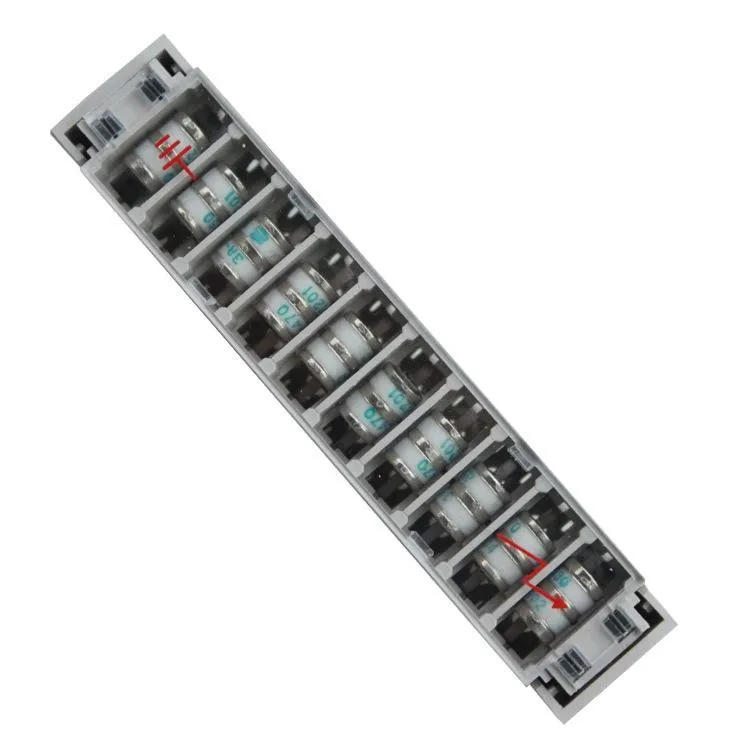

Magazine

Technical parameters:
The use of the environment:
Temperature:-10℃~+45℃
The relative temperature:≤85%(+30℃)
Atmospheric pressure:70kpa~106kpa


Electrical properties:
1. Insulation resistance≥1000MΩ
2. The DC breakdown voltage:190~260
3. Impulse breakdown voltage:≤800(at 1kv/as)
4. High pulse current:100A(10/1000us 300times)
5. High pulse current:10KA(8/20us 10times)
6. Resistance to alternating current:10A
7. Over voltage:135V
8. Interelectrode capacitance:<3PF
9. The transverse voltage duration:≤200ns
10. Can withstand 40 ~ 60HZ sine wave, the effective value of AC voltage, the 1000V lasted 1 minutes without breakdown and flashover phenomenon。

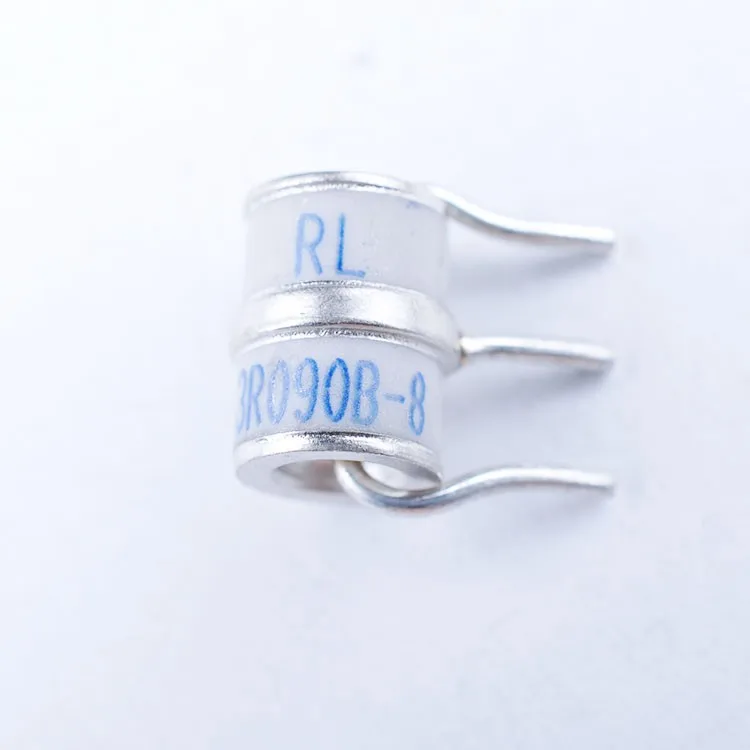

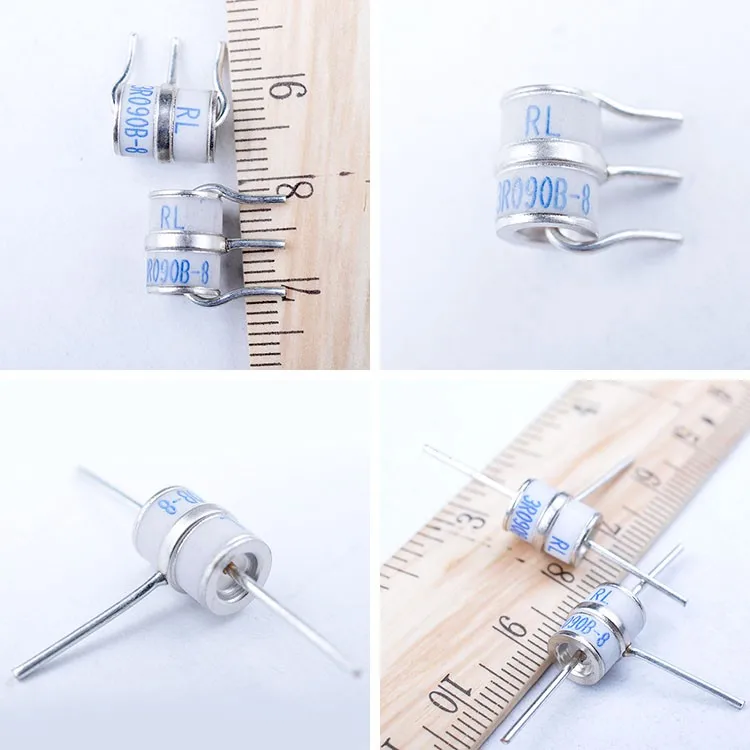

Gas Discharge Tube 3RB-8 Series
Gas discharge tubes(GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes. The ceramic envelope and with nickel connectors allow for high loads and Ruilon offer products that function at 0.5kA-200kA. The breakdown voltage of the devices have a wide range(up to 20% tolerance). Major applications are high frequency telecommunication lines, stations, security systems, HID and high quality Surge Protection Devices(SPD).
Feature:
Low capacitance
Micro-Gap Design
RoHS & HF compliant
Size: 8.0mm*10.0mm
DC Spark-over voltage: 75~600V
Stable breakdown voltage
High insulation resistance
High holdover voltage
Large absorbing transient current capability
Storage and operational temperature: -40℃ ~ +85℃
Detailed Images
Packing & Delivery
